Product Details:
|
| Max Resolution: | 1920*1080P | Frame Rate: | 1080P/fps/30fps, 720P/30fps |
|---|---|---|---|
| Focus Type: | Manual | Sensor: | CMOS |
| Input Interface: | USB2.0 | Cable Length: | 100cm |
| Material: | ABS+Metal | Packing Size: | 8*8*5cm |
| Highlight: | Manual Focus Webcamera Full HD 1080p,ROHS Manual Focus Webcamera,Manual Focus Web Camera Full HD 1080p |
||

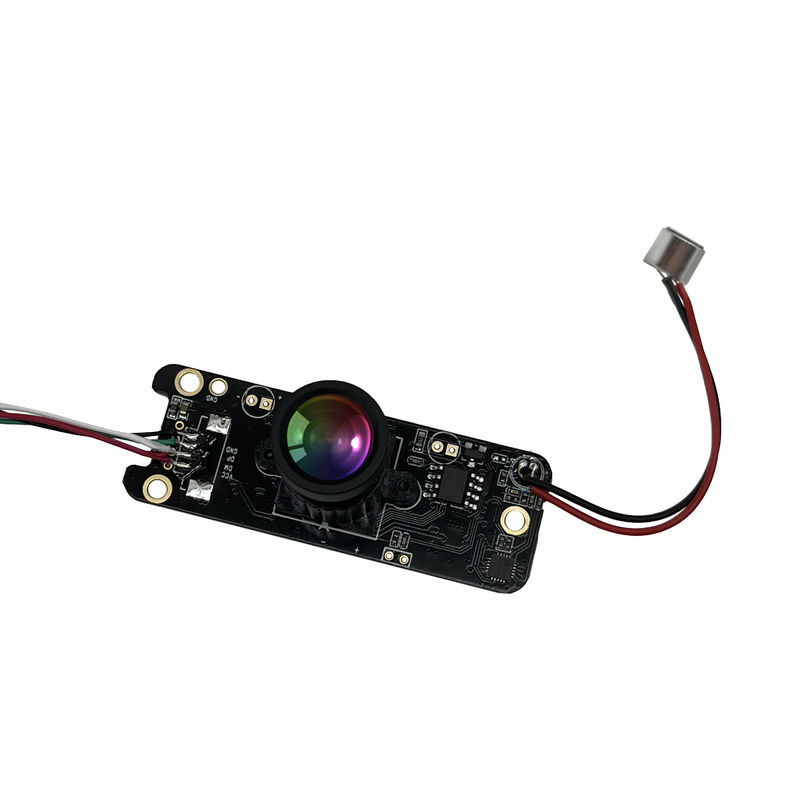

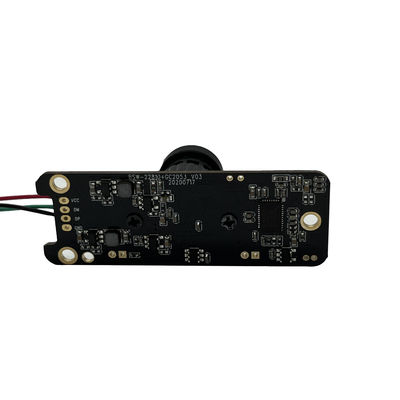

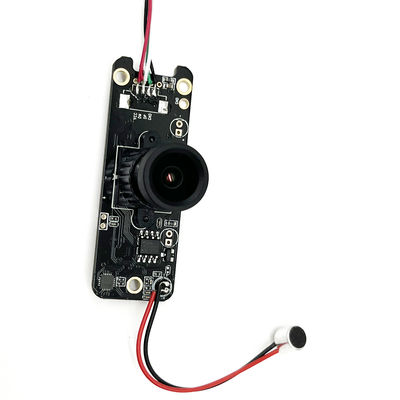

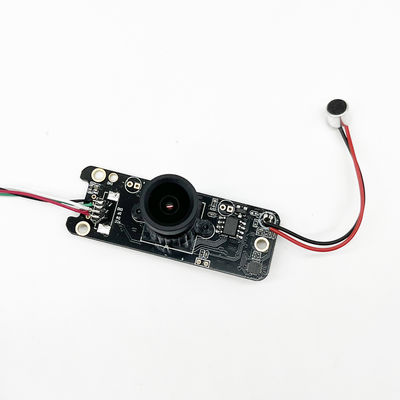

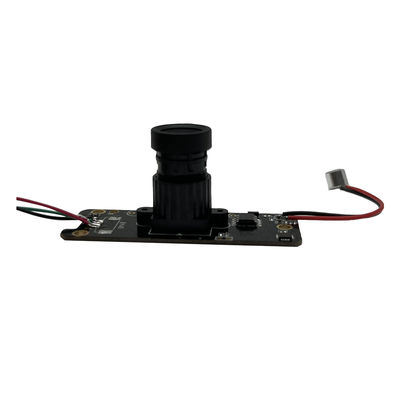

1080p 30fps Manual Focus Webcam Module With 2 Microphones Uvc Usb Camera Board
The following parameters do not represent the final version of the product, all parameters will be made according to your requirements!!!
| Model No. | 1080P webcam |
| CMOS | 1/2.9” |
| Picture formate | MJPEG / YUY2(YUYV) |
| Suppot resolution and frame |
1920x1080@30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@1fpsYUY2 / 2592x1944@ 1fpsYUY2 2048x1536@3fpsYUY2 /1600x1200@3fpsYUY2 1920x1080@3fpsYUY2/ 1280x1024@3fpsYUY2 1280x960@5fpsYUY2/1280x720@5fpsYUY2 1024 x 768@5fpsYUY2/800 x 600@20fpsYUY2 640x480@ 30fpsYUY2 / 320x240@ 30fpsYUY2 |
| Connector type | USB2.0 High Speed |
| AEC | support |
| AEB | support |
| AGC | support |
| Adjustable parameters | llightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
| Lens |
Size: 1/2.3, FOV:100Degree Relative Illumination (Sensor): 70% IR filter: 650±10nm |
| Power | USB BUS POWER 4P-2.0mm |
| Voltage | DC5V |
| Current | 200mA |
| Size | 50mm × 25mm |
| Stock temprature | -20°C to 70°C |
| Working temprature | 0°C to60°C |
| USB cable | 1M(2M/3M/5M) |
| Support system |
Win XP/Vista/Win7/Win8 /Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
